• High density Cat5 KVM with either 16 or 32 ports in 1U
• Cost efficient DB-15KVM integration
• Single or “One Man” installation slide for easy, quick installation
• 104 key notepad keyboard with full numerical pad
• Mix PS/2, USB & SUN Multi-Platform switch capability
• Secure remote User access across the world wide web

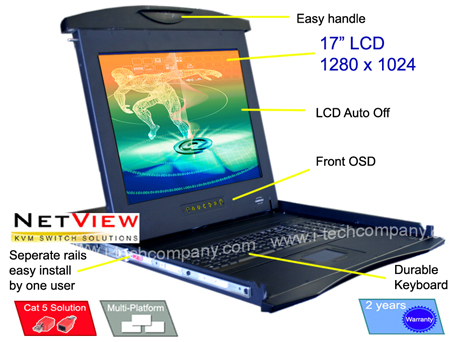

• 1U rackmount drawer with either 17" or 19" SAMSUNG LCD
• Either PS/2 or USB input to the LCD Drawer by cable selection
• Multiple keyboard language selections with either touchpad or trackball
• slide rails with fixed positions to prevent drawer movement when typing
• Multi lingual on screen display menu
• 12, 24 and 48 volt DC power options

• Use of the RJ45 Cat5 interface allows for a higher number of ports in smaller density
• Greater distances between your switch and servers allow enhanced data centre rack layouts
• Traditional Cat5 cords, when compared to coaxial cables, provide simple cable management
• Mix legacy PS/2 servers with newer USB and SUN solutions
• Enhanced data centre security with a second user or console up to
  300m from the installed switch / server
• Multi lingual on screen display menu
• Advanced user profiles and configurable OSD hot key combinations
• 12, 24 and 48 volt DC power options

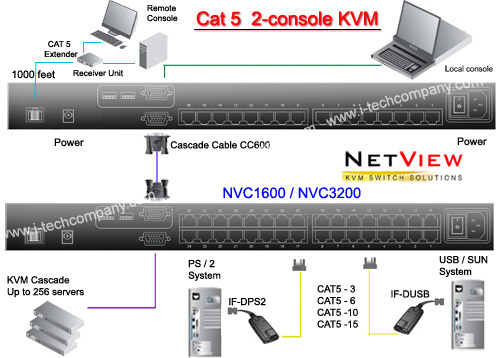

Expanding its range of server management solutions Austin Hughes introduces its new high density two console 16 and 32 port Cat5 KVM switches. Designed to provide added benefits to Its users the new switch range offers increased density, increased distances, enhanced cable management and multiplatform capabilities over traditional KVM switch platforms. Using either a PS/2 or USB dongle at the server end of the installation allows a user to cost effectively specify the switch to match the exact server configurations - multiplatform switches allow older or redundant servers to be migrated to servers with newer USB interfaces without replacing switch hardware.

Secure Remote Access

The second console allows a user to work securely via a remote Keyboard, monitor and mouse over a Cat5 link up to 300m away from the installed switch / servers. This plug and play technology requires no software to be installed on the servers but provides seamless secure access over Cat5 4 pair copper cable to all switch ports allowing access to your servers even if the Ethernet / WAN network has failed or is unavailable.

Enhanced User Interface

The user interface or OSD menu also offers many enhanced features for switch administration and user management, as an example the OSD allows Super Users to create custom user profiles / access rights for specific KVM ports. The OSD hotkey can also be configured using different key combinations and the multilingual interface allows users to select English, French, German, Spanish, Italian, Russian, Japanese and Simplified Chinese.
