1U Rackmount 1" LCD Monitor Keyboard 8-port PS/2 KVM Switch Console Drawer. Model:(NX1198e ) w/ Touch-Pad & ( NX1198b ) w/ Trackball
• Cost efficient DB-15KVM integration with either 8 or 16 ports in 1U
• 104 key notepad keyboard with full numerical pad
• Single or “One Man” installation slide for easy, quick installation |
| |
|
|

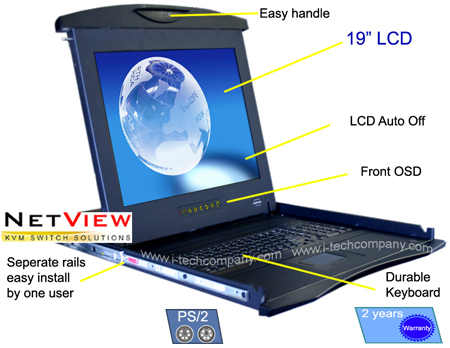

| GALLERY: |
| |
| |
|
|
| |
|
|
 |
|
| Top |
| LCD Drawer & KVM Benefits: |
- Cost efficient DB-15KVM integration with either 8 or 16 ports in 1U
- Single or “One Man” installation slide for easy, quick installation
- 104 key notepad keyboard with full numerical pad
- Mix PS/2, USB & SUN Multi-Platform switch capability
- Secure remote User access across the world wide web
|
| |
| Diagram : |
|
| Top |
| LCD Features: |
- 1U rackmount drawer with either 17" or 19" SAMSUNG LCD
- Either PS/2 or USB input to the LCD Drawer by cable selection
- Multiple keyboard language selections with either touchpad or trackball
- slide rails with fixed positions to prevent drawer movement when typing
- Multi lingual on screen display menu
- 12, 24 and 48 volt DC power options
|
| |
| KVM Features: |
- Multi-platform-mix PCs, SUNs, IBMs, HPs, Compaq & DELL
- Support 8 characters password protection & search PC server name
- Cascades for use with up to 128 servers
- New keep alive feature safeguards server for power loss to the switch
- Built-in microprocessor emulation for each port boots up process
- Auto scan-mode for monitoring your servers at intervals 5 to 99s
- Hot-pluggable when adding or removing PC w/o powering down the switch
- Name you server up to 16 characters long
- No software needed & all mounting hardware included
|
| |
| Package Content |
- (1) NX Series KVM drawer unit
- (8) 3-in-one KVM cable, 6-feet
- (2) Rear extension mounting brackets
- (8) Mounting screws for rear extension mounting brackets
- (4) Fasteners
- (1) Power cord
- (1)Power Adapter 110/220V
|
| |
| |
|
| |
| Top |
| Specifications: |
| LCD |
|
|
|
| Panel |
Samsung 19" LCD Panel |
|
|
| Screen Type |
TFT |
|
|
| Display Area |
386.4(H) x 289.8(V) mm |
|
|
| Contrast Ratio |
700 : 1 |
|
|
| Viewing Angle |
170° (H) x 170° (V) (Typ.) |
|
|
| Resolution: |
1280 x 1024 |
|
|
| Pixel pitch |
0.242(H) x 0.242(W) mm |
|
|
| Response Time |
Tr=5ms, Tf=10ms (Typ.) |
|
|
| Brightness |
250 cd/m2 |
|
|
| Panel Color |
16.7M |
|
|
| Back Light |
4 CCFTs (Cold Cathode Fluorescent tube) |
|
|
| Video |
|
|
|
| Horizontal Synchronization |
64 KHz (MAX.) |
|
|
| Vertical Synchronization |
60 Hz (MAX.) |
|
|
| Input Signal |
Analog RGB 0.7Vp-p |
|
|
| Power Management |
|
|
|
| VESA DPMS |
|
|
|
| Control |
|
|
|
| OSD Control |
Brightness, Contrast, Colour, Clock, H.Position, V.Position, Phase, Scaling, Auto config, Input select, Multi window, Clear EEPROM, OSD adjust, Save |
|
|
| External Connection |
|
|
|
| Power Input |
12V/5A DC adapter |
|
|
| Video Input |
15-pin D-Sub connector |
|
|
| Dimension |
15-pin D-Sub connector |
|
|
| Product dimension |
43.9(W) x 4.45(H) x 65(D)cm |
|
|
| Video Input |
73.5(L) x 57.5(W) x 18(H)cm |
|
|
|
| |
| Top |
| Technical Specifications: |
| |
|
|
|
| Channel ports : |
8 or 16 |
|
|
| PC Port Connector (All Female Type) |
PS/2 Keyboard Mini Din 6 pin
PS/2 Mouse Mini Din 6 pin
VGA HDDB 15pin |
|
|
| Cascade Port Connector (All Female Type) |
PS/2 Keyboard Mini Din 6 pin
PS/2 Mouse Mini Din 6 pin
VGA HDDB 15pin |
|
|
| Channel Port Connector (All Female Type) |
HDDB 15 pin |
|
|
| Channel Port Connection (Male to Male) |
HDDB 15 pin 3-in-1 Cable |
|
|
| PC Selection |
On Screen Display Manual, Hot Ke, Push Button |
|
|
| LED |
1 Bank LED
4/8/16 Online Port LED (Green)
4/8/16 Selected Port LED (Red) |
|
|
| On Screen Display Control |
Yes |
|
|
| Scan Intervals |
5~~99 sec. |
|
|
| Keyboard Emulation |
PS/2 |
|
|
| Mouse Emulation |
PS/2 |
|
|
| VGA Resolution |
1920 x 1440 |
|
|
| Bandwidth |
200MHz |
|
|
| Cascade MAX Level |
8 levels |
|
|
| MAX PC Connection |
116(4 ports) / 120 (8 ports) / 128 (16 ports) |
|
|
| Housing |
Metal |
|
|
| Power Adapter |
DC 5V, 2.5A |
|
|
| Operation Temperature |
0~~50°C |
|
|
| Storage Temperature |
-20~~60°C |
|
|
| Humidity |
0~~80°C, Non-Condensing |
|
|
|
| |
