| Netview |
|
| Model: NX119CE16e/b |
|
|

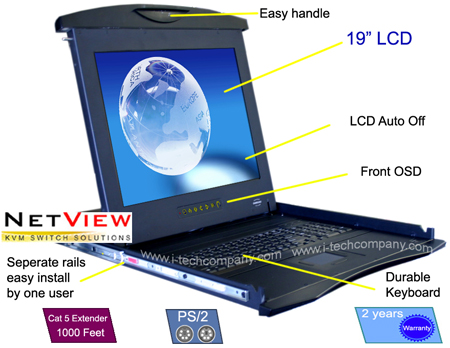

1U Rack Mount 19" LCD Keyboard Drawer 8-port PS/2 KVM Switch, 2 consoles (Local + Remote Via CAT 5 Extenders). Model:(NX119CE16e ) w/ Touch-Pad & ( NX119CE16b ) w/ Trackball
• Cost efficient DB-15KVM integration with either 8 or 16 ports in 1U
• 104 key notepad keyboard with full numerical pad
• Single or “One Man” installation slide for easy, quick installation |
| |
|
|
| GALLERY: |
| |
| |
|
|
| |
|
|
 |
|
| Top |
| LCD Drawer & KVM Benefits: |
- Cost efficient DB-15KVM integration with either 8 or 16 ports in 1U
- Single or “One Man” installation slide for easy, quick installation
- 104 key notepad keyboard with full numerical pad
- Mix PS/2, USB & SUN Multi-Platform switch capability
- Secure remote User access across the world wide web
|
| |
| CAT5 2 Console KVM Diagram : |
|
| Top |
| LCD Features: |
- 1U rackmount drawer with either 17" or 19" SAMSUNG LCD
- Either PS/2 or USB input to the LCD Drawer by cable selection
- Multiple keyboard language selections with either touchpad or trackball
- slide rails with fixed positions to prevent drawer movement when typing
- Multi lingual on screen display menu
- 12, 24 and 48 volt DC power options
|
| |
| KVM Features: |
 |
- 8/16 port KVM over IP switch is 19' rack mount size design.
- Support DOS, Win3.X, Win95/98/98SE/2000/ME/SP, WinNT, Netware, Unix, Linux
- Support iMAC, Power MAC and Sun Microsystems with USB port (Need work with USB-PS/2 adapter)
- Hot Plug- Add PCs or Remove Connected PCs for Maintenance without Powering Down the KVM switch or PCs.
- High Video Quality- Resolution UP To 1920X1440 (local side), 1280X1024 (remote side)
- No Software Required-easy PC selection via On Screen Display Menu (OSD), Push Buttons, Hot Keys
- AT local console side-Support eight characters password protection and search PC server name
- At Remove console side-Use SSL protocol for any encrypted network traffic between itself and a connected client.
- Keyboard status restored when switching PCs
- LED Display for easy status monitoring
- Buzzer sound for switching port confirmation.
- Built-in one extra daisy chain port and no waste and PC port
- No DIP switch setting needed and auto detect daisy chain bank
- Manage serves around the world
- KVM (keyboard, video, mouse) access over IP and analogous telephone line.
- BIOS level access
- No impact on server or network performance
- Automatically senses video resolution for best possible screen capture
- High-performance mouse tracking and synchronization.
|
| |
| Package Content |
- 1 piece Base unit- 8 port PS/2 IP-KVM switch
- 1 piece User's manual
- 1 piece Installation software and User Manual on CD-ROM
- 1 piece AC to DC Power Adapter
- 1 set Rack Mount Kit
- 8 x 3-in-one cables (One HDDB 15-pin male to one HDDB 15-pin and two Mini Din 6-pin PS/2 cables)
|
| |
| Top |
| Accessories: |
| IF-DPS2 |
IF-DUSB |
CC600 |
CAT5-3
CAT5-6
CAT5-10
CAT5-15 |
 |
 |
 |
 |
| USB dongle |
PS/2 dongle |
6ft cascade cable |
Cat5 cable
3ft, 6ft, 10ft & 15ft |
|
| |
| |
|
| |
| Top |
| LCD Specifications: |
| LCD |
|
|
|
| Panel |
Samsung 19" LCD Panel |
|
|
| Screen Type |
TFT |
|
|
| Display Area |
386.4(H) x 289.8(V) mm |
|
|
| Contrast Ratio |
700 : 1 |
|
|
| Viewing Angle |
170° (H) x 170° (V) (Typ.) |
|
|
| Resolution: |
1280 x 1024 |
|
|
| Pixel pitch |
0.242(H) x 0.242(W) mm |
|
|
| Response Time |
Tr=5ms, Tf=10ms (Typ.) |
|
|
| Brightness |
250 cd/m2 |
|
|
| Panel Color |
16.7M |
|
|
| Back Light |
4 CCFTs (Cold Cathode Fluorescent tube) |
|
|
| Video |
|
|
|
| Horizontal Synchronization |
64 KHz (MAX.) |
|
|
| Vertical Synchronization |
60 Hz (MAX.) |
|
|
| Input Signal |
Analog RGB 0.7Vp-p |
|
|
| Power Management |
|
|
|
| VESA DPMS |
|
|
|
| Control |
|
|
|
| OSD Control |
Brightness, Contrast, Colour, Clock, H.Position, V.Position, Phase, Scaling, Auto config, Input select, Multi window, Clear EEPROM, OSD adjust, Save |
|
|
| External Connection |
|
|
|
| Power Input |
12V/5A DC adapter |
|
|
| Video Input |
15-pin D-Sub connector |
|
|
| Dimension |
15-pin D-Sub connector |
|
|
| Product dimension |
43.9(W) x 4.45(H) x 65(D)cm |
|
|
| Video Input |
73.5(L) x 57.5(W) x 18(H)cm |
|
|
|
| |
| Top |
| Technical Specifications: |
| |
|
|
|
| PC ports : |
8 or 16 |
|
|
| Console Port |
1 |
|
|
| PC Port Connector (All Female Types) |
| Local Console: |
PS/2 Keyboard Mini Din 6 pin
PS/2 Mouse Mini Din 6 pin
VGA HDDB 15pin |
| Remote Console: |
RJ-45 8P8C |
|
|
|
| Daisy Chain Port Connector (All Female Types) |
PS/2 Keyboard Mini Din 6 pin
PS/2 Mouse Mini Din 6 pin
VGA HDDB 15pin |
|
|
| Serial Port (DB9 pin Male) |
1 |
|
|
| LAN port (RJ-45 8P8C) |
1
10BASE-T Ethernet uses Category 3/4/5/5E/6 UTP
100BASE-T Ethernet uses Category 5/5E/6 UTP |
|
|
| Reset button |
1 |
|
|
| PC selection |
On Screen Display Menu, Hot Key, Push Button |
|
|
| PC Port LED |
16 |
|
|
| Bank 7 segment LED |
1 |
|
|
| On Screen Display Control |
Yes |
|
|
| Scan Intervals |
5~~99 sec. |
|
|
| Keyboard Emulation |
PS/2 |
|
|
| Mouse Emulation |
PS/2 |
|
|
| VGA Resolution |
Local Console: 1920 x 1440
Remote Console: 1280 x 1024 |
|
|
| Daisy Chain MAX Level |
8 levels |
|
|
| MAX PC Connection |
128 |
|
|
| Housing |
Metal |
|
|
| Power Adapter |
DC 5V, 2.5A |
|
|
| Operation Temperature |
0~~50°C |
|
|
| Storage Temperature |
-20~~60°C |
|
|
| Humidity |
0~~80°C, Non-Condensing |
|
|
| Size |
19" Rack Mount / 1RU |
|
|
|
| |
| Top |
| Mechanical Drawing: |
 |
|
 |
| |
